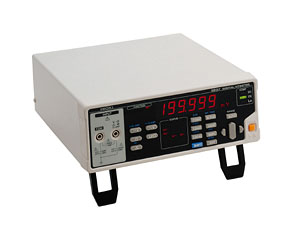

万用表3237/3237-01  细节说明
	High-speed DMM (3.3 ms/sample), Minimizing tact time with sequence control at a truly affordable price Samples at rates of up to 300 samples/sec. (3.3 ms/sample) Comparator function provides high-speed pass/fail evaluation Equipped with external input and output for sequence control Useful Save/Load function helps work go faster Interface supports full remote operation -------------------------------------------------------------------------------- 基本参数 DC Voltage range 200 mV to 1000 V, 5 ranges,   Best accuracy: ±0.025 % rdg. ±2 dgt. AC Voltage range 2000 mV to 700 V, 4 ranges,   Best accuracy: ±0.2 % rdg. ±100 dgt. , Effective value rectifier    Frequency characteristics at AC Voltage 10 to 300 kHz Resistance range 200 ohm to 100 M-ohm, 7 ranges,   Best accuracy: ±0.05 % rdg. ±2 dgt. DC Current range None AC Current range (Used with clamp-on sensor range) Frequency characteristics at AC Current (clamp-on sensor specification) Frequency range None Continuity Possible, 50 ohm or less (at 2000 ohm range) Diode check Possible (6 V open terminal voltage) Other functions Current measurement (with clamp), Comparator, external input and output, Save/Load function, AVE, trigger, RS-232C, GP-IB ( -01 model ) Range switching Auto or Manual Display LED, max. 199999 dgt., max. 999999 dgt. (at Frequency) Sampling rate 300 times/sec (Fast), 8 to 9 time/sec (Medium), 1 time/sec (Slow) Power supply 100 to 240 V AC, 50/60 Hz, (specify when ordering) Dimensions, mass 215 mm(8.46 in)W x 80 mm(3.15 in)H x 265 mm(10.43 in)D, 2.6 kg (91.7 oz) Accessories 9170 TEST LEAD (1), Power cord (1) Measurement probe 9170 TEST LEAD(Supplied as standard with the 3237/3237-01) Current measurement 9010 CLAMP ON PROBEInput from 10 to 500 A, 40 Hz to 1 kHz for 0.2 V AC output, Banana terminal 9018 CLAMP ON PROBEInput from 10 to 500 A, 40 Hz to 3 kHz for 0.2 V AC output, Banana terminal *9132 CLAMP ON PROBEInput from 20 to 1000 A, 40 Hz to 1 kHz for 0.2 V AC output. Banana terminal PC communication 9637 RS-232C CABLE 9 pin-9 pin, reverse /1.8 m(5.91 ft) length 9638 RS-232C CABLE 9 pin-25 pin, reverse /1.8 m(5.91 ft) length 9151-02 GP-IB CONNECTION CABLE 2 m (6.56 ft) length 9151-04 GP-IB CONNECTION CABLE 4 m (13.12 ft) length Printer 9442 PRINTER 9443-02 AC ADAPTERfor the 9442 PRINTER, EU type 9443-03 AC ADAPTERfor the 9442 PRINTER, USA type 9444 CONNECTOR CABLEfor the 9442 PRINTER, 1.5 m(4.92 ft) length 1196 RECORDING PAPER 112 mm(4.41 in) width x 25 m (82.03 ft), roll type, 10 rolls per set *220H PAPER WINDER Paper width 70 mm (2.76 in) to 220 mm (8.66 in), using special-purpose AC adapter
