可直接测量电压对电流，电流对电流，电压对电压之间的相位角。可测试方向保护和距离保护，也可测试PT，CT的方向性。

输入：0.002-10A，0.2-500V

曲线方式：正弦式

频率范围：40-75Hz

分辨率：0.1度

精度：测试范围20%以上 0.5度；

20%以下 1度

显示:LCD；

电源:230V 50Hz

尺寸： 180 × 180 × 70mm

重量:1kg

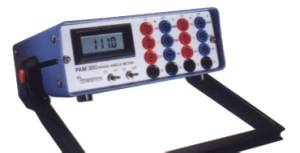

This phase angle meter is designed to test for example directional protection relays and to conduct directional tests on instrument transformers.
Since precise accuracy and versatility were given top priority by designers of the compact and handy PAM 360, its capabilities are equal to those of its heavier and more expensive competitors.
Thanks to its fine resolution and high accuracy, the PAM 360 is also ideal for testing sensitive distance protection. It has a broad range and can sense either current or voltage. Moreover, the PAM 360's inputs are galvanically separated from each other and from the mains.
Its many outstanding features make the PAM 360 a highly versatile instrument, and it is priced competitively.
The PAM 360 is delivered complete with test lead set in a handy transport case.
